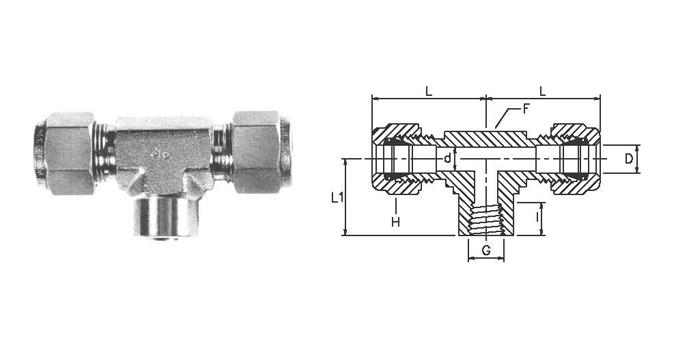

FEMALE BRANCH TEE - METRIC TUBING

TUBE
O.D.
D

NPT FEMALE
PIPE SIZE
G

WINSEAL NUMBER

L

Ll

H

F

d

3

1/8

2 FBT2

24.6

19.1

11.0

14

2.4

6

1/8

4 FBT2

27.6

19.1

14.0

14

4.8

6

1/4

4 FBT4

30.2

21.4

14.0

19.0

4.8

8

1/4

6 FB-14

31.8

22.2

16.0

19.0

6.4

10

3/8

8 FBT6

31.8

23.0

19.0

22.0

10.3

12

1/2

10 FBT8

38.9

28.6

22.0

27.0

10.3

12

3/4

2 FBT12

42.1

31.8

22.0

33.3

10.3



FEMALE BRANCH TEE - FRACTIONAL TUBING

TUBE
O.D.
D

NPT FEMALE
PIPE SIZE
G

WINSEAL NUMBER

L

Ll

H

F

d

1/8

1/8

-21 FBT-2-3

.97

.75

7/16

9/16

.09

1/4

1/8

-41 FBT-2-3

1.06

.75

9/16

9/16

.19

1/4

1/4

-41 FBT-4-3

1.17

.88

9/16

3/4

.19

3/8

1/4

-61 FBT-4-3

1.23

.88

11/16

3/4

.28

1/2

3/8

-8IFBT-6-3

1.42

.88

7/8

7/8

.41

1/2

1/4

-8IFBT-4-3

1.42

.88

7/8

13/16

.41

1/2

1/2

-8IFBT-8-3

1.53

1.12

7/8

1-1/16

.41

5/8

1/2

-101 FBT -8-3

1.53

1.12

1

1-1/16

.50

3/4

3/4

-12IFBT -12-3

1.76

1.25

1-1/8

1-5/16

.62

1

3/4

-16IFBT -16-3

1.98

1.25

1-1/2

1-3/8

.88

1

1

-16IFBT -12-3

2.11

1.50

1-1/2

1-5/8

.88

All dimensions are for reference purpose only & subject to change.
