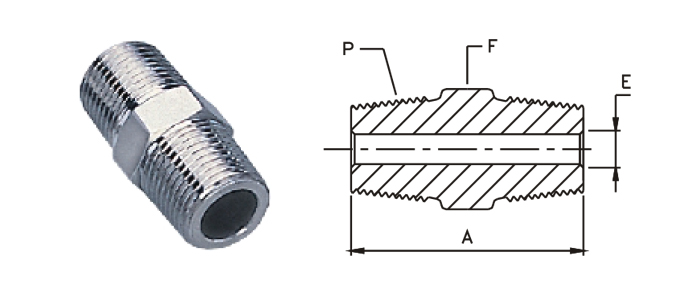

HEX NIPPLE

MALE NPT SIZE P

BASIC ORDERING NO

A

MIN
OPENING
F

HEX
FLAT
E

1/16

-2-WHN

1.01

.12

5/16

1/8

-2-WHN

1.01

.19

7/16

1/4

-4-WHN

1.40

.28

9/16

3/8

-6-WHN

1.43

.38

11/16

1/2

-8-WHN

1.84

.47

7/8

3/4

-12-WHN

1.84

.62

1.1/16

1

-16-WHN

2.32

.88

1.3/8

All dimensions are for reference purpose only & subject to change.
