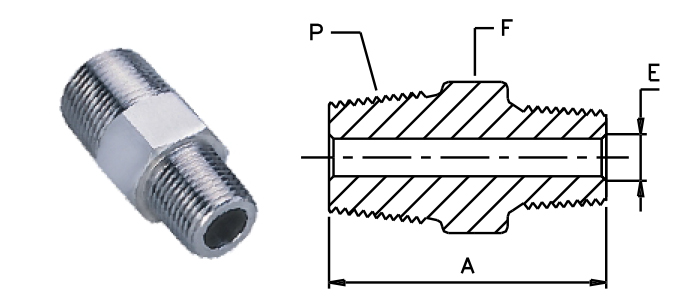

HEX REDUCING NIPPLE

MALE NPT SIZE P

MALE
 NPT
SIZE
 P

BASIC
ORDERING
NUMBER

A

MIN
OPENING
E

HEX
FLAT
F

1/8

1/16

-2-WHRN-1

1.01

.12

7/16

1/2

1/8

-4-WHRN-2

1.22

.19

9/16

3/8

1/8

-6-WHRN-2

1.25

.19

11/16

3/8

1/4

-6-WHRN-4

1.43

.28

11/16

1/2

1/8

-8-WHRN-2

1.47

.19

7/8

1/2

1/4

  -8-WHRN-4

1.65

.28

7/8

1/2

3/8

  -8-WHRN-6

1. 65

.38

7/8

3/4

1/4

  -12-WHRN-4

1. 65

.28

1.1/16

3/4

1/2

  -12-WHRN-8

1.84

.47

1.1/16

1

1/2

  -16-WHRN-8

2.13

-47

1.3/8

1

           3/4

  -16-WHRN-12

2.13

. 62

1.3/8

All dimensions are for reference purpose only & subject to change.
