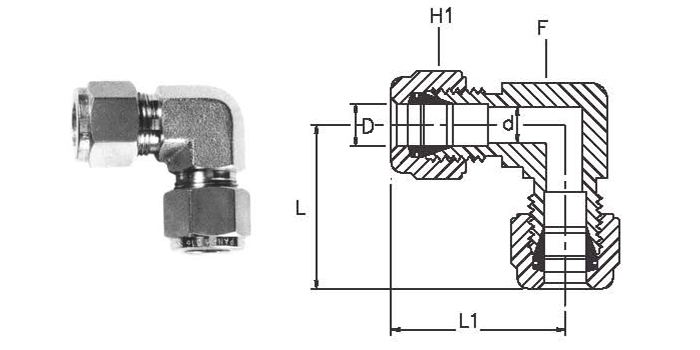

TUBE
O.D.
D

WINSEAL NUMBER

L1

 H1

F

d

6

-6UE-9

27.1

14

12.7

4.8

8

-8UE-9

28.9

16

14.3

6.4

10

-10U E-9

31.6

19

17.5

7.9

12

-12U E-9

36.1

22

20.6

9.5

15

-15U E-9

38.9

25

23.8

11.9

16

-16U E-9

38.0

25

23.8

12.7

18

-18U E-9

39.8

30

27.0

15.1

20

-20U E-9

44.6

32

34.9

15.9

22

-22U E–9

44.6

32

34.9

18.3

25

-25U E-9

49.1

.     40

34.9

21.8

TUBE
O.D.
D

WINSEAL NUMBER

L1

H1

F

d

1/16

-11UE-9

.70

5/16

3/8

.05

1/8

-21UE-9

.88

7/16

3/8

.09

3/16

-31UE-9

1.00

1/2

1/2

.12

1/4

-41UE-9

1.06

9/16

1/2

.19

5/16

-51UE-9

1.13

5/8

9/16

.25

3/8

-61UE-9

1.20

11/16

5/8

.28

1/2

-81UE-9

1.42

7/8

13/16

.41

5/8

-101UE-9

1.50

1

15/16

.50

3/4

-121UE-9

1.57

1-1/8

1-1/16

.62

7/8

-141UE-9

1.76

1-1/4

1-3/8

.72

1

-161UE -9

1.93

 1-1/2

1-3/8

.88
