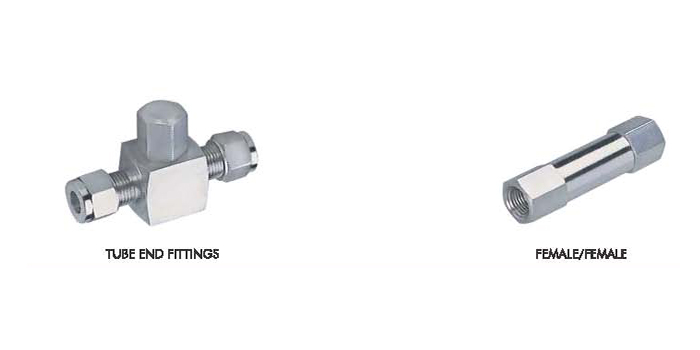

Winflow Check Valves

WINFLOW Check valves are widely used in all types of gas or liquid service where unidirectional flow is required.

DESIGN FEATURES

  1. Pressure up to 3000psi.
  2. Temperatures up to 191°C with Vinton seal.
  3. Variety of end connections.
  4. Smooth flow path minimizes pressure drop.
  5. Back stopped poppet prevents over stressing of spring.
  6. Full material traceability.
  7. 100% tested for crack and reseal performance.

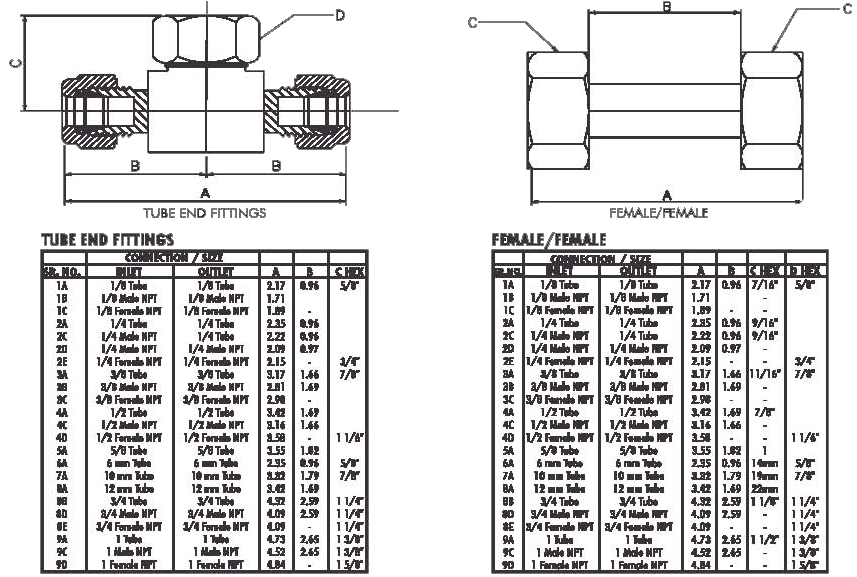

All dimensions are for reference purpose only & subject to change.
