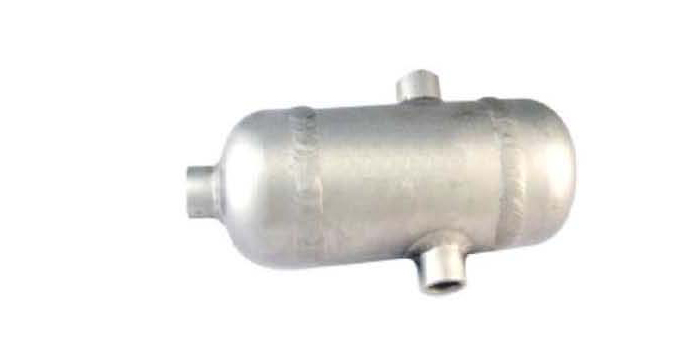

Winflow Condensate Pots/Seal Pots
Seal pots/Condensate chambers are available in carbon steel to ASTM A 106. All Grades of Stainless and other alloy steel fabricated from Seamless pipe with inside cleaned and checked to assure desired volume. Standard pipe sizes are 2" to 6". Connection fittings are NPT or welded socket adaptors, Butt Weld etc.
Weld joints are Argon welded as per ASME SEC IX by qualified welding personnel. All headers are 100% hydrostatically / pneumatically tested at applicable pressures . Pots are subjected to Dye Penetrate Testing. The following can be offered upon request.
Typical industry applications include: Refineries, Power plants, Chemical & Petrochemical, Steel plants and other Process industries.
Installation can be either vertical or horizontal lines between the primary (Flow Meter) and the secondary (transmitter/gauge) to act as barrier to the line fluid permitting direct sensation of the flow conditions.

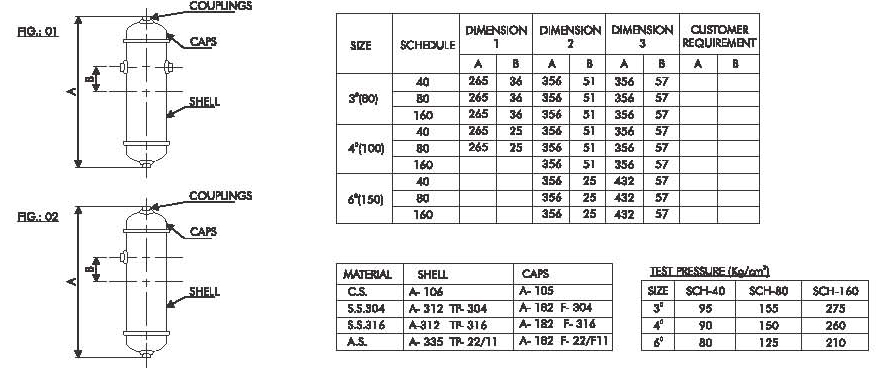

- ALL CONNECTIONS ARE 1/2.05, SEE &CAN EM1ER BE THREADED OR PROVIDED WITH SOCKH WELD ENDS.
- THREADED CONNECTION (NATI : AS PER ANSI B 2.1
- THREADS CONNECTION (ESP) AS PER 2779
- SOCKET WELDING ENDS: AS PER ANSI B 16.11
