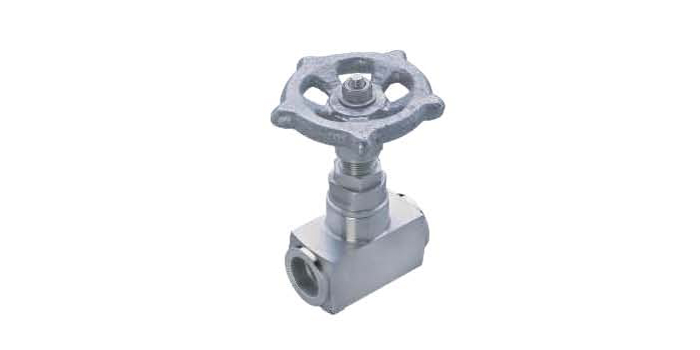

Winflow Gate Valves

WINFLOW Gate valves are widely used in multiple on/off operation with tight shut off. They are available with screwed bonnet type and forged outside screw and yoke type bolted bonnet configuration.


  1. Working pressure up to 5000psi.
  2. Suitable for highest service temperature of the applicable pressure temperature rating.
  3. Variety of end connections.
  4. Smooth flow path minimizes pressure drop.
  5. Available in carbon steel, stainless steel and other materials.
  6. Full material traceability.
  7. 100% tested for crack and reseal performance.

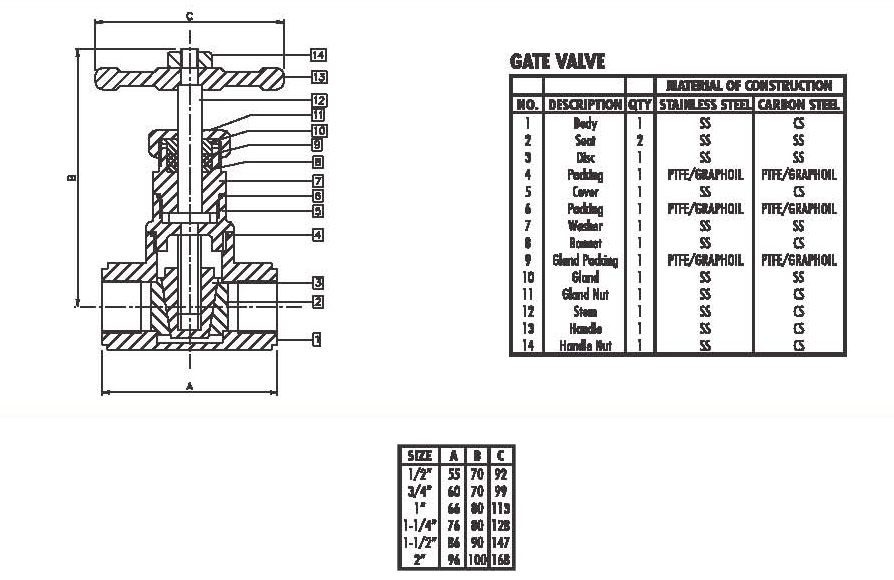

All dimensions are for reference purpose only & subject to change.
