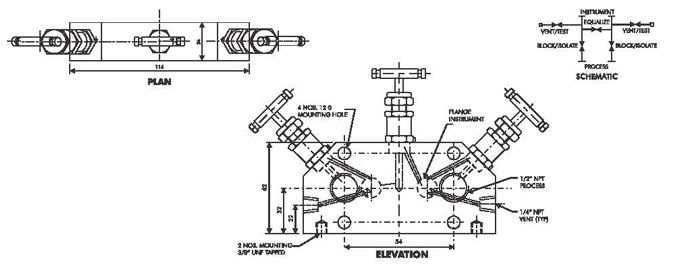

WINFLOW 3 Valve Manifold Direct Mount, base mount connection design for connecting system impulse lines and transmitters. This valve consists of 1/2" NPT Female connections on 54 mm. (2-1/8") centres and one equalizer valve and two block valves. 1/4" NPT purge connections (2) optional.

DESIGN FEATURES

1. Forged one piece body construction for higher strength.
2. Two isolation and one equalizing valve for instrument balancing applications.
3. Accurate and fine control of venting.
4. Metal to metal body bonnet seal for higher pressure and temperature sealing.
5. Temperature rating -50°C TO 230°C.
6. Mounting holes are standard to allow easy fixing to pipe stands and enclosure.
7. Non rotating Vee/Ball tip design.
8. Full material traceability.
9. Material of construction can be supplied to meet the requirement of NACE MR-01-75.
