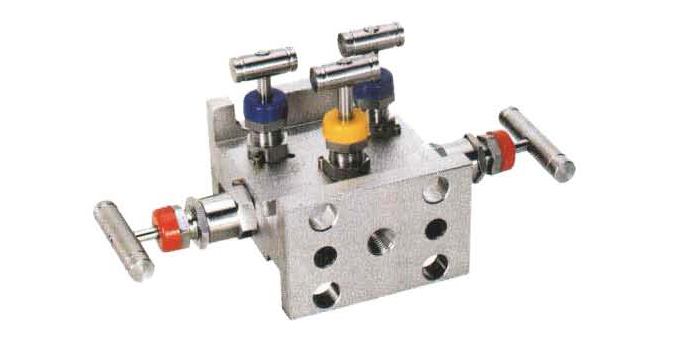

WINFLOW 5 VALVE MANIFOLD - PIPE TO PIPE

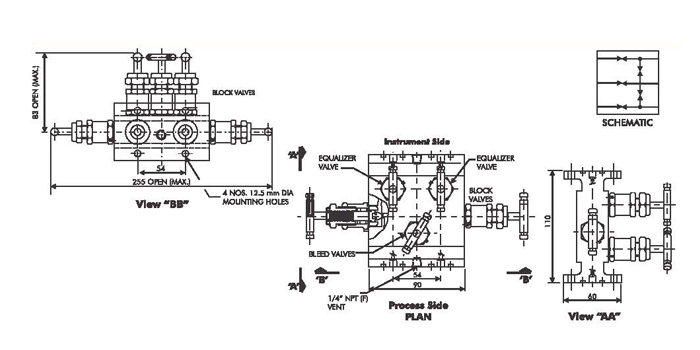

WINFLOW 5 Valve Manifold Flange to Flange connection design for connecting system impulse lines and transmiffers. This valve consist to 1/2" NPT Female connections on 54 mm (2-1/8") centres and of Two equalizer valves, Two block valves and One vent valve.

DESIGN FEATURES

  1. Forged one piece body construction for higher strength.
  2. Two isolation and one equalizing valve for instrument balancing applications.
  3. Accurate and fine control of venting.
  4. Metal to metal body bonnet seal for higher pressure and temperature sealing.
  5. Temperature rating -50°C TO 230°C.
  6. Mounting holes are standard to allow easy fixing to pipe stands and enclosure.
  7. Non rotating Vee/Ball tip design.
  8. Full material traceability.
  9. Material of construction can be supplied to meet the requirement of NACE MR-01-75.
