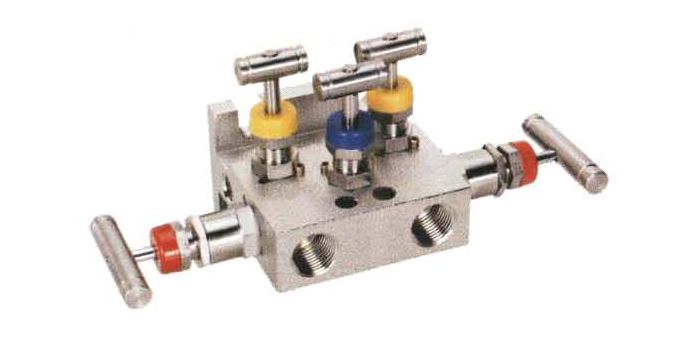

WINFLOW 5 VALVE MANIFOLD - PIPE TO FLANGE

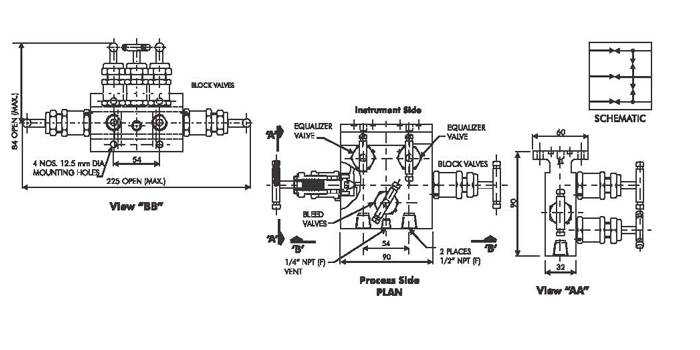

WINFLOW 5 Valve Manifold Pipe to Flange design for connecting system impulse lines and transmitters. This valve consist Pipe to Flange connections with Teflon/Viton 0-Ring packing on 54 mm. (2-1/8") centre’s to suit the inlet connection. This Valve provides two instrument isolating valves, Two equalizer valves and One bleed valve. (For Testing).

DESIGN FEATURES

  1. Forged one piece body construction for higher strength.
  2. Two isolation and one equalizing valve for instrument balancing applications.
  3. Accurate and fine control of venting.
  4. Metal to metal body bonnet seal for higher pressure and temperature sealing.
  5. Temperature rating -50°C TO 230°C.
  6. Mounting holes are standard to allow easy fixing to pipe stands and enclosure.
  7. Non rotating Vee/Ball tip design.
  8. Full material traceability.
  9. Material of construction can be supplied to meet the requirement of NACE MR-01-75.
