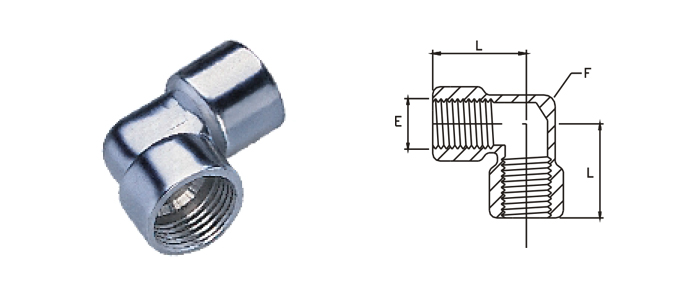

FEMALE ELBOW
FEMALE |
BASIC |
MIN |
WRENCH |
L |
1/8 |
-2WPE |
.34 |
9/16 |
1.04 |
1/4 |
-4-WPE |
.45 |
3/4 |
1.17 |
3/8 |
-6-WPE |
.59 |
7/8 |
1.42 |
1/2 |
-8-WPE |
.73 |
1-1/16 |
1.56 |
3/4 |
- 12 -WPE |
.94 |
1-5/16 |
1.92 |
1 |
- 16 -WPE |
1.17 |
1-1/2 |
1.91 |
All dimensions are for reference purpose only & subject to change.
