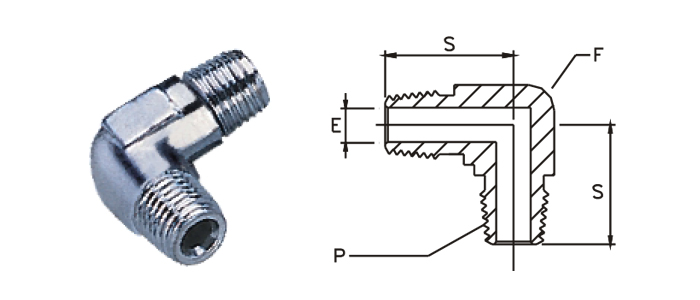

Male Elbow
MALE NPT SIZE |
BASIC ORDERING NUMBER |
MIN OPENING |
WRENCH FLAT F |
S |
1/8 |
-2-WPME |
.19 |
7/16 |
.88 |
1/4 |
-4 -WPME |
.28 |
9/16 |
1-05 |
3/8 |
-6-WPME |
.38 |
11/16 |
1-17 |
1/2 |
-8-WPME |
.47 |
7/8 |
1-45 |
All dimensions are for reference purpose only & subject to change.
