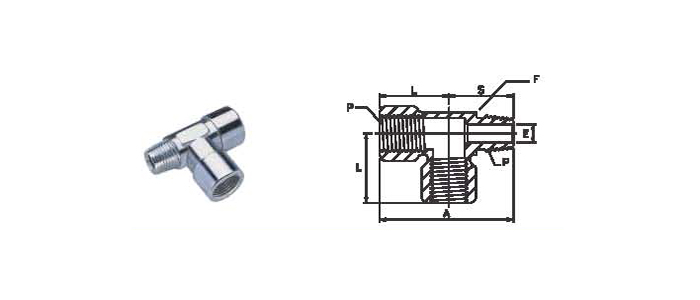

STREET TEE
MALE & FEMALE NPT SIZE |
BASIC ORDERING NUMBER |
A |
MIN OPENING |
WRENCH FLAT |
L |
S |
1/8 |
-2-ST |
1.91 |
0.19 |
9/16 |
1.04 |
0.87 |
1/4 |
-4-ST |
2.34 |
0.2B |
3/4 |
1.17 |
1.17 |
3/8 |
-6-ST |
2.68 |
0.38 |
7/8 |
1.42 |
1.26 |
1/2 |
-8-ST |
3.12 |
0.47 |
1-1/16 |
1.56 |
1.56 |
All dimensions are for reference purpose only & subject to change.
