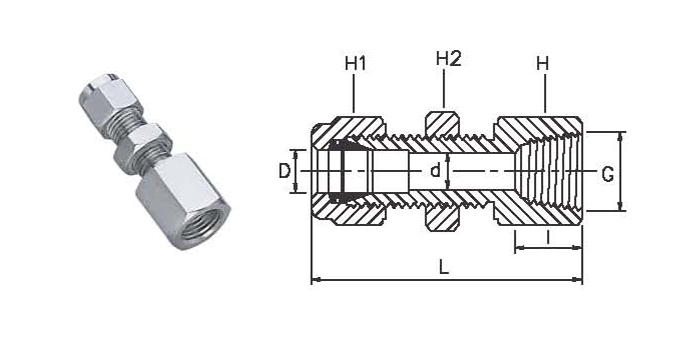

BULK HEAD FEMALE CONNECTOR METRIC TUBING

TUBE
O.D.
D

NPT FEMALE
PIPE SIZE
G

WINSEAL NUMBER

L

H

HI

H2

d

6

1/8

6BFC2

46.8

16

14.0

16.0

4.8

6

1/8

6BFC4

51.6

16

14.0

16.0

4.8

10

1/4

10BFC4

55.6

22

19.0

22

7.1

12

3/8

12BFC6

61.9

24

22.0

24

10.3

12

1/2

12BFC8

67.5

27

22.0

24

10.3



BULK HEAD FEMALE CONNECTOR FRACTIONAL TUBING

 TUBE O.D. D

NPT FEMALE
PIPE SIZE
G

WINSEAL NUMBER

L

H

H1

H2

d

1/8

1/8

-2IBFC2

1.76

5/8

7/16

1/2

.09

1/4

1/8

-4IBFC2

1.85

5/8

9/16

5/8

.19

1/4

1/4

-4IBFC4

2.04

3/4

9/16

5/8

.19

3/8

1/4

-6IBFC4

2.17

3/4

11/16

3/4

.28

1/2

3/8

-8IBFC6

2.43

15/16

7/8

15/16

.41

1/2

1/2

-8IBFC8

2.62

1-1/16

7/8

15/16

.41

All dimensions are for reference purpose only & subject to change.
