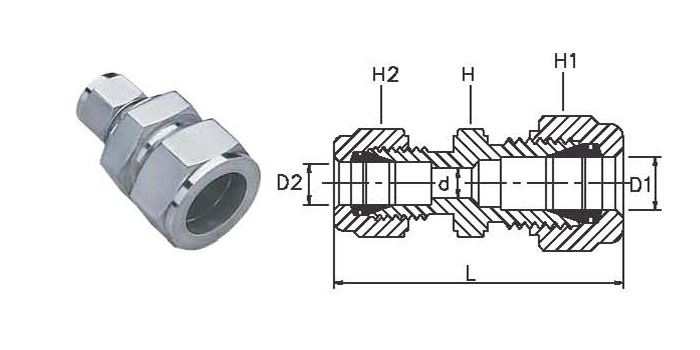

TUBE
Q.D.
DI

TUBE O.D.
SIZE
D2

WINSEAL NUMBER

L

MINIMUM
OPENING
d

H

HI

H2

6

3

-6RU-6-3

38.6

2.4

12.7

14

12

6

4

-6RU-6-4

39.4

2.4

14

14

12

8

6

-8RU-6-6

42.3

4.8

15

16

14

10

6

-10RU-6-6

44.5

4.8

18

19

14

10

8

-10RU-6-8

45.1

6.4

18

19

16

12

6

-12RU-6-6

47.0

4.8

20.6

22

14

12

8

-12RU-6-8

47.8

6.4

20.6

22

16

12

10

-12RU-6-10

48.7

7.9

20.6

22

19

16

12

-16RU-6-12

52.0

9.5

24

25

22

25

18

-25RU-6-18

61.0

15.1

35

40

30

25

20

-25RU -6-20

62.3

15.9

35

40

32

TUBE
Q.D.
DI

TUBE O.D.
SIZE
D2

WINSEAL NUMBER

L

MINIMUM
OPENING
d

H

H1

H2

1/8

1/16

-2IRU-6-1

1.22

.06

7/16

7/16

5/16

1/4

1/16

-4IRU-6-1

1.35

.06

1/2

9/16

5/16

1/4

1/8

-4IRU-6-2

1.52

.09

1/2

9/16

7/16

3/8

1/16

-6IRU-6-1

1.44

.06

5/8

11/16

5/16

3/8

1/8

-6IRU-6-2

1.61

.09

5/8

11/16

7/16

3/8

1/4

-6IRU-6-4

1.70

.19

5/8

11/16

9/16

3/8

5/16

-6IRU-6-5

1.74

.25

5/8

11/16

5/8

1/2

1/4

-8IRU-6-4

1.85

.19

13/16

7/8

9/16

1/2

3/8

-81RU-6-6

1.91

.28

13/16

7/8

11/16

5/8

3/8

-10IRU-6-6

1.94

.28

15/16

11

1/16

5/8

1/2

-10IRU-6-8

2.05

.41

15/16

1

7/8

3/4

1/2

-12IRU-6-8

2.11

.41

1-1/16

1-1/8

7/8

3/4

5/8

-12IRU-6-10

2.11

.50

1-1/16

1-1/8

1

1

3/4

-16 IRU-6-12

2.47

.62

1-3/8

1-1/2

1-1/8
