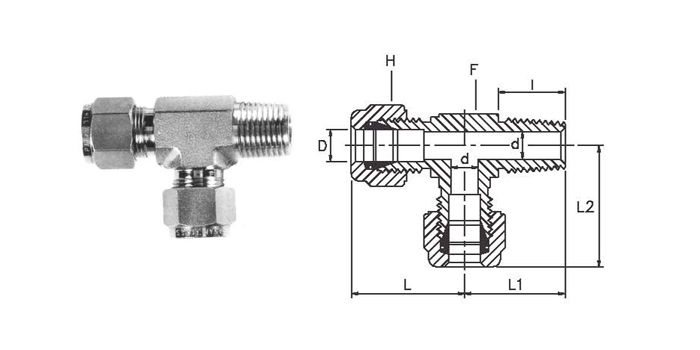

TUBE
O.D.D

NPT MALE
PIPE SIZE
G

WINSEAL NUMBER

L

LI

L2

I

F

H

d

3

          1/8

3MRT-2GT

23.8

11.9

23.6

9.7

12.0

11.0

2.4

3

1/4

3MRT-4GT

24.6

14.3

24.6

14.2

14.0

11.0

2.4

6

1/8

6MRT-2GT

26.2

13.5

26.9

9.5

14.0

14.0

4.8

6

1/4

6MRT-4GT

27.8

14.3

26.9

14.2

14.0

14.0

4.8

10

1/4

10MRT-4GT

29.4

15.9

30.5

14.2

18.0

18.0

7.1

12

3/8

12MRT-6GT

34.9

19.1

36.1

14.2

20.6

22.0

10.3

12

1/2

12MRT-SGT

36.5

20.6

36.1

19.0

22.0

22.0

10.3

TUBE
Q.D.
D

NPT MALE
PIPE SIZE
G

WINSEAL NUMBER

L

L1

L2

I

F

H

d

1/8

1/8

-2IMRT - 3 - 2TG

1.63

.70

.93

.38

7/16

7/16

.09

1/8

1/4

-2IMRT - 3 - 4TG

1.89

.92

.97

.56

9/16

9/16

.09

3/16

1/8

-3MRT - 3 - 2TG

1.66

.70

.96

.38

7/16

1/2

.12

1 /4

1/8

-4IMRT - 3 - 2TG

1.80

.74

1.06

.38

1/2

9/16

.19

1/4

1/4

-4IMRT - 3 - 4TG

1.98

.92

1.06

.56

9/16

9/16

.19

5/16

1/8

-5IMRT - 3 - 2TG

1.99

.82

1.17

.38

5/8

5/8

.19

3/8

1/4

-6IMRT - 3 - 4TG

2.20

1.00

1.20

.56

5/8

11/16

.28

3/8

3/8

-6IMRT - 3 - 6TG

2.42

1.11

1.31

.56

11/16

11/16

.28

1 /2

3/8

-8IMRT - 3 - 6TG

2.53

1.11

1.42

.56

13/16

7/8

.38

1 /2

1/2

-8IMRT - 3 - 8TG

2.72

1.30

1.42

.75

7/8

7/8

.41

5/8

1/2

-10IMRT- 3 - 8TG

2.88

1.38

1.50

.75

15/16

1

.47

3/4

3/4

-12IMRT- 3 -12TG

3.02

1.45

1.57

.75

1-1/16

1-1/8

.62
