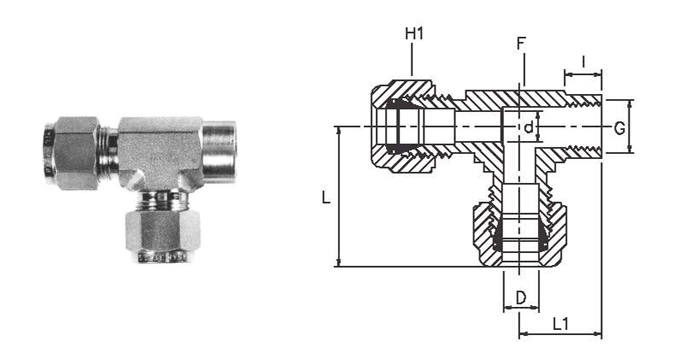

TUBE O.D.D

NPT FEMALE PIPE SIZE G

WINSEAL NUMBER

L

L1

I

F

d

H

3

1/8

3FRT2

24.6

19.1

9.5

14.0

2.4

11

6

1/8

6FRT2

27.0

19.1

9.5

14.0

4.8

14

6

1/4

6FRT4

30.2

21.4

14.3

19.0

4.8

14

10

1/4

10FRT4

31.8

21.4

14.3

19.0

7.1

19

     12

3/8

12FRT6

36.5

23.0

14.3

22.0

10.3

22

TUBE
O.D.
D

NPT FEMALE
PIPE SIZE
G

WINSEAL NUMBER

L

L1

I

F

d

H

1/8

1/8

-2IFRT-2-3

.97

.75

.41

9/16

.09

7/16

1/4

1/8

-4IFRT-2-3

1.06

.75

.41

9/16

.19

9/16

1/4

1/4

-41 FRT-4-3

1.17

.88

.59

3/4

.19

9/16

3/8

1/4

-61 FRT-4-3

1.23

.88

.59

3/4

.28

11/16

1/2

3/8

-81 FRT-6-3

1.42

.88

.59

7/8

.41

7/8

1/2

1/2

-81 FRT-8-3

1.57

1.12

.78

1-1/16

.41

7/8

3/4

3/4

-12IFRT-12-3

1.76

1.25

.81

1-5/16

.62

1-1/4
