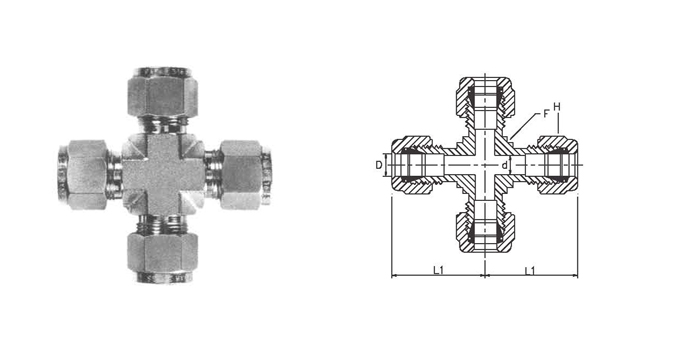

UNION CROSS - METRIC TUBING

TUBE
O.D.
D

WINSEAL NUMBER

Ll

H

F

d

3

-3 UC-4

22.3

12

9.5

2.4

6

-6UC-4

27.0

14

12.7

4.8

8

-8UC-4

29.9

16

15.9

6.4

10

-10UC-4

33.5

19

17.4

7.9

12

-12UC-4

36.0

22

20.6

9.5

16

-16UC-4

37.0

25

23.8

12.7

18

-18UC -4

38.3

30

27.0

     15.1



UNION CROSS - FRACTIONAL TUBING

TUBE O.D. D

WINSEAL NUMBER

Ll

H

F

d

1/8

-2IUC-4

.88

7/16

3/8

.09

1/4

-4IUC-4

1.06

9/16

1/2

.19

5/16

-5IUC-4

1.17

5/8

5/8

.25

3/8

-6IUC-4

1.20

11/16

5/8

.28

1/2

-8IUC-4

1.42

7/8

13/16

.41

3/4

-12IUC-4

1.57

1-1/8

1-1/16

.62

1

-16IUC-4

1.93

1-1/2

      1-3/8

.88
