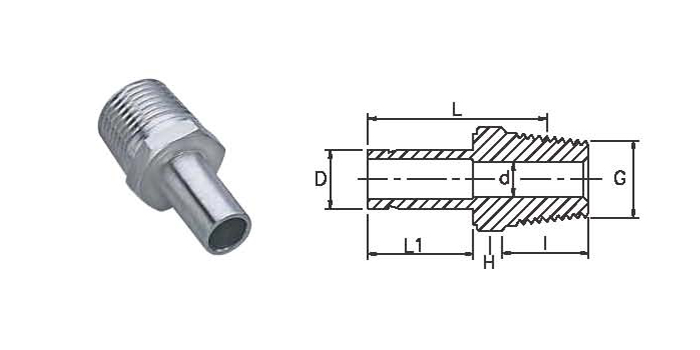

TUBE
O.D.
D

NPT MALE
PIPE SIZE
G

WINSEAL NO

L

Ll

I

H

d

6

1/8

6MA2

23.8

15.9

9.5

12.0

4.0

6

1/4

6MA4

26.2

15.9

14.3

14.0

4.0

8

1/4

8MA4

28.6

18.3

14.3

14.0

5.8

8

3/8

8MA6

29.4

18.3

14.3

18.0

5.8

10

1/4

10MA4

28.6

18.3

14.3

14.0

7.1

10

3/8

10MA6

29.4

18.3

14.3

18.0

7.5

10

1/2

10MA8

31.8

18.3

19.1

22.0

7.5

12

1/4

12MA4

35.0

24.6

14.3

14.0

7.1

12

3/8

12MA6

35.7

24.6

14.3

18.0

9.1

12

1/2

12MA8

36.5

24.6

19.1

22.0

9.1

TUBE
O.D.
D

NPT
PIPE SIZE
G

WINSEAL NO

L

Ll

I

H

d

1/8

1/8

2IMA2

7/8

9/16

3/8

7/16

3/32

1/4

1/8

4IMA2

31/32

5/8

3/8

7/16

3/16

1/4

1/4

4IMA4

11/32

5/8

9/16

9/16

3/16

1/4

3/8

4IMA6

1-1/16

5/8

9/16

11/16

3/16

1/4

1/2

4IMA8

1.5/32

5/8

3/4

7/8

3/16

5/16

1/4

5IMA4

1-1/8

23/32

9/16

9/16

1/4

5/16

3/8

5IMA6

1-7/32

23/32

9/16

11/16

1/4

3/8

1/4

6IMA4

1-1/8

11/16

9/16

9/16

9/32

3/8

3/8

6IMA6

1-1/8

11/16

9/16

11/16

9/32

3/8

1/2

6IMA8

1-7/32

11/16

3/4

7/8

9/32

1/2

1/4

8IMA4

1-11/32

29/32

9/16

9/16

9/32

1/2

3/8

8IMA6

1-3/8

29/32

9/16

11/16

25/64

1/2

1/2

8IMA8

1-7/16

29/32

3/4

7/8

25/64

3/4

1/2

12IMA8

1-9/16

1-1/32

3/4

7/8

1/2

3/4

3/4

12IMA12

1-17/32

1-1/32

3/4

1-1/16

19/32

1

3/4

16IMA12

1-13/16

1-3/16

3/4

1-1/16

23/32

1

1

16IMA16

1-15/16

1-5/16

15/16

1-3/8

13/16
