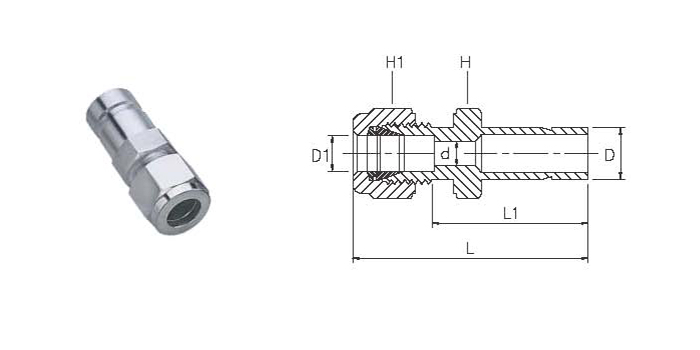

TUBE
O.D.
D

TUBE
O.D.
DI

WINSEAL NUMBER

L

L1

H

H1

 d

8

6

8TUR6

40.5

26.2

12.7

14.0

4.8

10

6

10TUR6

40.5

26.2

12.7

14.0

4.8

10

8

10TUR8

42.0

26.2

14.0

16.0

6.4

12

6

12TUR6

46.8

32.5

12.7

14.0

9.1

12

8

12TURB

48.3

32.5

14.0

16.0

6.4

12

10

12TUR10

51.5

33.3

18.0

19.0

8.0

TUBE O.D. D

TUBE
O.D.
DI

WINSEAL NUMBER

L

L1

H

H1

d

1/4

1/8

4ITUR2

1-15/32

15/16

7/16

9/16

3/32

3/8

1/4

6ITUR4

1.5/8

1

1/2

11/16

3/16

1/2

1/4

8FTUR4

1-27/32

1-7/32

9/16

9/16

3/16

1/4

3/8

8ITUR6

1-15/16

1-1/4

5/8

11/16

9/32

3/4

1/2

12FTUR8

2-7/32

1-9/32

1-3/16

7/8

13/32

1

1/2

16FTUR8

2-1/8

1-9/16

1-1/16

7/8

13/32

1

3/4

16ITUR12

2-19/16

1-19/32

1-1/16

1-1/8

5/8
